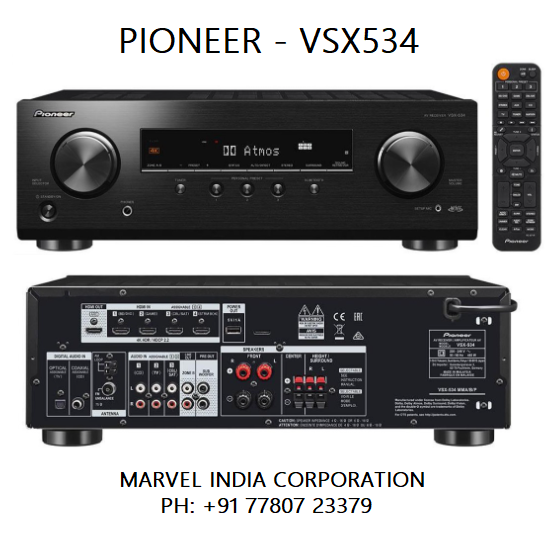

The VSX-534 comes in a user-friendly new design, with a 12 % slimmer size than the previous model for easy installation, 4K indicator, and Personal Preset and Bluetooth® Input buttons on the front panel. Immerse in enveloping sound with Dolby Atmos® and DTS: X® audio formats. Or even without height or surround speakers, you can still enjoy a virtual 3D surround effect with Dolby Atmos Height Virtualizer* and DTS Virtual: X. The AV receiver is compatible with Ultra HD, HDR10, HLG, and Dolby Vision™ with support for HDCP 2.2, so you can fully appreciate premium content such as 4K videos.
Amplification
›› Channels: 5
›› Amplification Type: Direct Energy
›› 150 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
›› 135 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch Driven)
Audio Features
›› Dolby Atmos®, Dolby Surround upmixer
›› DTS: X®, DTS Neural:X® upmixer
›› Reflex Optimizer
›› Dolby Atmos Height Virtualizer*
›› DTS Virtual:X
›› Dolby® TrueHD, Dolby Digital Plus
›› DTS-HD Master Audio, DTS-HD High-Resolution Audio, DTS 96/24, DTS-ES, DTS-HD Express
›› DSD Disc (SACD) Playback via HDMI (2.8 MHz/2ch, 5.1ch)
›› Digital Quad-Core 32-bit DSP (Cirrus Logic)
›› 384 kHz/32-bit D/A Conversion with AK4438 (AKM)
›› Audio Return Channel (ARC) on HDMI
›› MCACC Auto Room Tuning
• Phase Control
• Subwoofer EQ
›› Advanced Sound Retriever (2ch)
›› Advanced Surround Modes
• Classical, Unplugged, Entertainment Show, Drama, Extended
Stereo, Extended Mono, Front Stage Surround Advance
Video Features
›› Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
›› HDR10, HLG and BT.2020 Wide Colour Gamut Signal Passthrough
›› Dolby Vision Compatible
›› Ultra HD Upscaling (1080p to 4K)
›› 3D Ready (Blu-ray Disc™, Broadcast, and Games)
›› Deep Colour (36-bit), “x.v. Colour”
Convenience Features
›› Personal Preset
›› Dialog Enhancement
›› Bluetooth® Wireless Technology (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
›› User-Friendly GUI with System Setup Menu
›› On-Screen Information for Audio/Video Status
›› Auto Power Off in HDMI Standby Through
›› AM/FM Tuner 40 Presets
›› Sleep Timer
›› User-Friendly Simple Remote Control
Front Terminals
›› MCACC Setup MIC In
›› Phones 1 Out
Rear Terminals
›› HDMI 4 In (4 Assignable)
›› HDMI 1 Out
›› US B 1 In for Streaming Dongles
›› Audio 3 In (Assignable)
›› Digital Coaxial 1 In (Assignable)
›› Digital Optical 1 In (Assignable)
›› Subwoofer 2 Pre Out
›› ZON E B Line Out for Wireless Headphones
›› Speaker 5 ch Out (FRONT, CENTER, SURROUND/HEIGHT)
›› FM/AM Antenna
Specifications
›› Power Requirements: AC 220-240 V, 50/60 Hz
›› Power Consumption/Standby: 465 W/0.2 W
›› Dimensions (W x H x D): 435 x 148 x 321 mm
›› Weight: 8 kg
* Available with future firmware update
