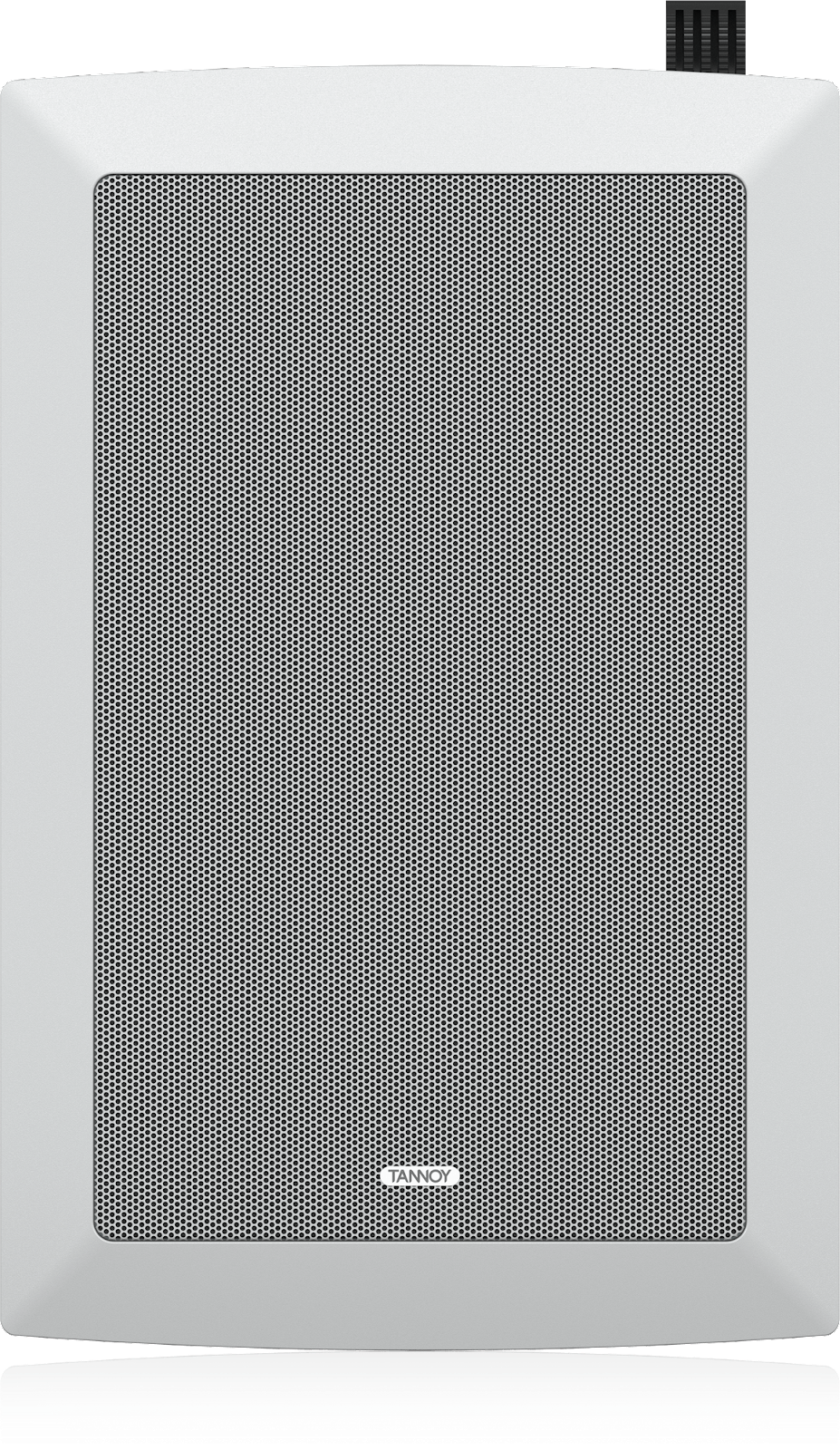

Tannoy iW 6DS-WH 2 Way 6" In-Wall Loudspeaker

iW 6DS-WH

Designed to excel in a wide variety of sound reinforcement applications, the full range iW 6DS-WH is a compact 280-Watt wall mount loudspeaker that provides inspiring acoustic performance with exceptional clarity and articulation. The iW 6DS-WH is ideally suited for paging systems, boardrooms, offices, business music systems, reception rooms, houses of worship, retail outlets, shopping malls and bars.

Product Features

• 2 way compact wall mount loudspeaker for multi-zone music and AV systems
• 25 mm titanium diaphragm high frequency unit delivers exceptional clarity and articulation throughout the high frequency range
• 6" bass driver provides exceptional low frequency performance
• 70 Watts continuous, 280 Watts peak power handling delivers exceptional dynamics and realism
• Highly efficient 89 dB/Watt sensitivity
• WideBand* tweeter technology to enhance reproduction of wide band digital audio formats
• Robust construction and performance allows use within commercial environments
• Ideal for paging systems, boardrooms, offices, business music systems, reception rooms, houses of worship, retail outlets, shopping malls and bars
• Weather resistant steel mesh grille to protect driver
• Semi matt white finish fits unobtrusively in any environment
• Both baffle and grille may be painted to match décor
• Innovative self-aligning clamping system for easy installation into standard stud partition wall
• Dynamic high frequency protection
• Tannoy - Over 90 years of British sound heritage and innovation
• 10-Year Warranty Program*
• Designed and engineered in the U.K.

Superb Performance

iW 6DS-WH’s design comprises a 150 mm (6.00") bass driver with a 25 mm (1.00") titanium diaphragm high frequency unit mounted in an enclosure that is robust enough for commercial applications. This configuration handles up to 280 Watts to deliver exceptional dynamics, realism, and enhanced intelligibility, all in a compact and highly efficient system that is well-suited to a wide range of amplifier options – including entry level amplifiers.

Attractive & Easy to Install

The semi matt white, weather resistant grille and enclosure can be painted to match any décor, and features an innovative self-aligning clamping system for easy installation into standard stud partition walls.

Specification

Performance
System Type	In-wall loudspeaker
Frequency Response (1)	75Hz - 51kHz ( /-3dB)
Low Frequency Alignment (2)	36Hz (-6dB)
Recommended Amplifier Power	20 - 180W @ 8 Ohms
Power Handling (3)	Average: 90W Programme: 180W Peak: 360W
Sensitivity 2.38 Volts @ 1 metre (1)	Anechoic: 91dB Half space: 94dB
Maximum SPL @ 1 metre (4)	Average: 110dB Peak: 116dB
Impedance	8 Ohms
Drive Units
Dispersion	90 degrees
Driver Complement	Supertweeter™: 25mm (1.00”) titanium dome Dual Concentric™: 25mm (1.00”) titanium dome Bass driver: 165mm (6.50”)
Crossover
Frequency	1.8kHz, 16kHz
Type	Passive
Optional THP 60 Transformer
Maximum SPL (4)	107dB
Wattage Tap Selections	60, 30, 15, 7.5 Watts
Construction
Finish	White - paintable
Connectors	Gold plated spring terminals
Dimensions (H x W)	Front baffle: 320 x 209mm (12.60 x 8.23”) Maximum wall thickness: 25mm (1.00”)
Cut-out Dimensions (H x W)	271.50 x 168.50 (10.68 x 6.63")
Rec. in-wall Mounting Volume	20 litres (0.7 cu.ft.)
Mounting Depth	98.9mm (3.89”)
Weight (each)	3kg (6lbs 6oz)
Accessories	Pre-installation ring Back can Back can with 60W transformer
