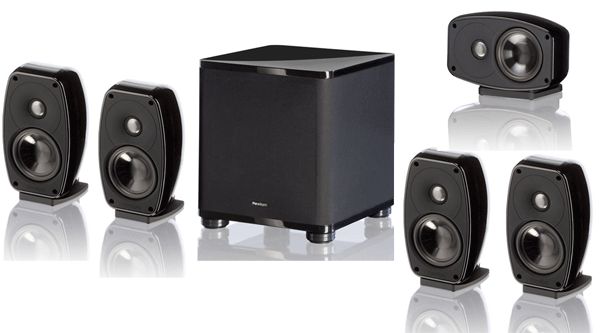

Paradigm Cinema 100 CT

5.1 home theater system to meet your needs: budget, style and space!

When size and sound matter, our affordable audiophile collection delivers blockbuster solutions like Cinema. Cinema speakers are designed for smaller spaces but despite their compact size, they deliver a blockbuster music and home theater experience. While it’s true, there are tiny satellite speakers aided by small subwoofers that can be “hidden” in many living spaces, when it comes to great audiophile sound these systems had never delivered … until Cinema. For years now, our award-winning Cinema speakers have been delivering a seamless music and home theater soundstage that brings movies to life and makes music sound “live.” Rumour has it that with this new generation of Cinema speakers, the sound may be even better than the movie.

Cinema Satellite Tweeter

Superior S-PAL™ Satin-Anodized Pure-Aluminum Domes with powerful neodymium magnets and ferro-fluid cooling for increased power handling! Highs are transparent with a superb sense of air and exceptional spaciousness.

Wire Mesh Tweeter Guard and WaveGuide™ technology ensure a smooth, wide panorama of audiophile-quality sound.

Cinema Satellite Bass/Midrange Driver

Paradigm’s Cinema speakers deliver fantastic performance through the clever use of technology. Mineral-filled, polypropylene cones; advanced motor structures and high-temperature voice coils easily identify Cinema speakers as uniquely Paradigm.

Cinema Sub Subwoofer

Superior 8˝ High-Excursion Driver made of a durable reinforced polymer composite that in concert with the superior suspension system and motor/magnet structure allow the cone to travel farther while maintaining effective control.

Built-In High-Current, Discrete Output Amplifier:

300 watts Dynamic Peak / 100 watts RMS Sustained.

Dual Ported Design for even and articulate response.

• Amplifier Controls:
• Auto On / Standby / Soft Clipping
• Subwoofer Cut-Off Frequency
• Sub / Sat Phase Switch – 0° or 180°

Partnered with the NRC

Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.

Specifications

DESIGN	2-driver, 2-way acoustic suspension, mineral-filled polymer enclosure
CROSSOVER	2nd-order electro-acoustic at 1.8 kHz
FREQUENCY RESPONSE ON-AXIS	±2dB from 125 Hz - 20 kHz
HIGH FREQUENCY DRIVER	25-mm (1 in) S-PAL™ dome tweeter, ferro-fluid damped and cooled
MID/BASS FREQUENCY DRIVER	102-mm (3-1/2 in) mineral-filled polypropylene cone, 25-mm (1 in) high-temperature voice coil, advanced motor structures and oversized ferrite magnets
LOW FREQUENCY EXTENSION	85 Hz (DIN)
SENSITIVITY ROOM / ANECHOIC	88 dB / 85 dB
FREQUENCY RESPONSE 30° OFF-AXIS	±2dB from 125 Hz - 15 kHz
SUITABLE AMPLIFIER POWER RANGE	15 - 100 watts
MAXIMUM INPUT POWER	50 watts
IMPEDANCE	Compatible with 8 ohms
DIMENSIONS HXWXD	8.375" × 4.8125" × 6.8125" (21.3cm × 12.2cm × 17.3cm)
WEIGHT	4 lbs. (1.8 kg)
FINISHES	Black Gloss
CINEMA SUB
DESIGN	Single driver, bass reflex, high-velocity low-turbulence resitive ports, built-in amplifier, flexible positioning: gloss side up or cloth side up with feet
AMPLIFIER	300 watts Dynamic Peak; 100 watts RMS Sustained
AMPLIFIER FEATURES	Auto-on; standby; soft clipping
FREQUENCY RESPONSE ON-AXIS	±3 dB 42Hz – 150Hz
LOW FREQUENCY EXTENSION	32 Hz (DIN)
LOW FREQUENCY DRIVER	210-mm (8 in) high-excursion reinforced co-polymer
IMPEDANCE	10k ohms
DIMENSIONS HXWXD	13.4375" × 12.6875" × 12.6875" (34.1cm × 32.2cm × 32.2cm)
WEIGHT	21.4 lbs. (9.7 kg)
FINISHES	Cloth with Gloss Black
LOW PASS FILTER FREQUENCY	Variable 35 Hz - 150 Hz; Bypass Option
SUB / SAT PHASE ALIGNMENT	Variable 0° - 180°
INPUTS	Two RCA (L/R-Mono) for L/R lineout or Sub-Out/LFE-Out of receiver/processor or other line-level source
